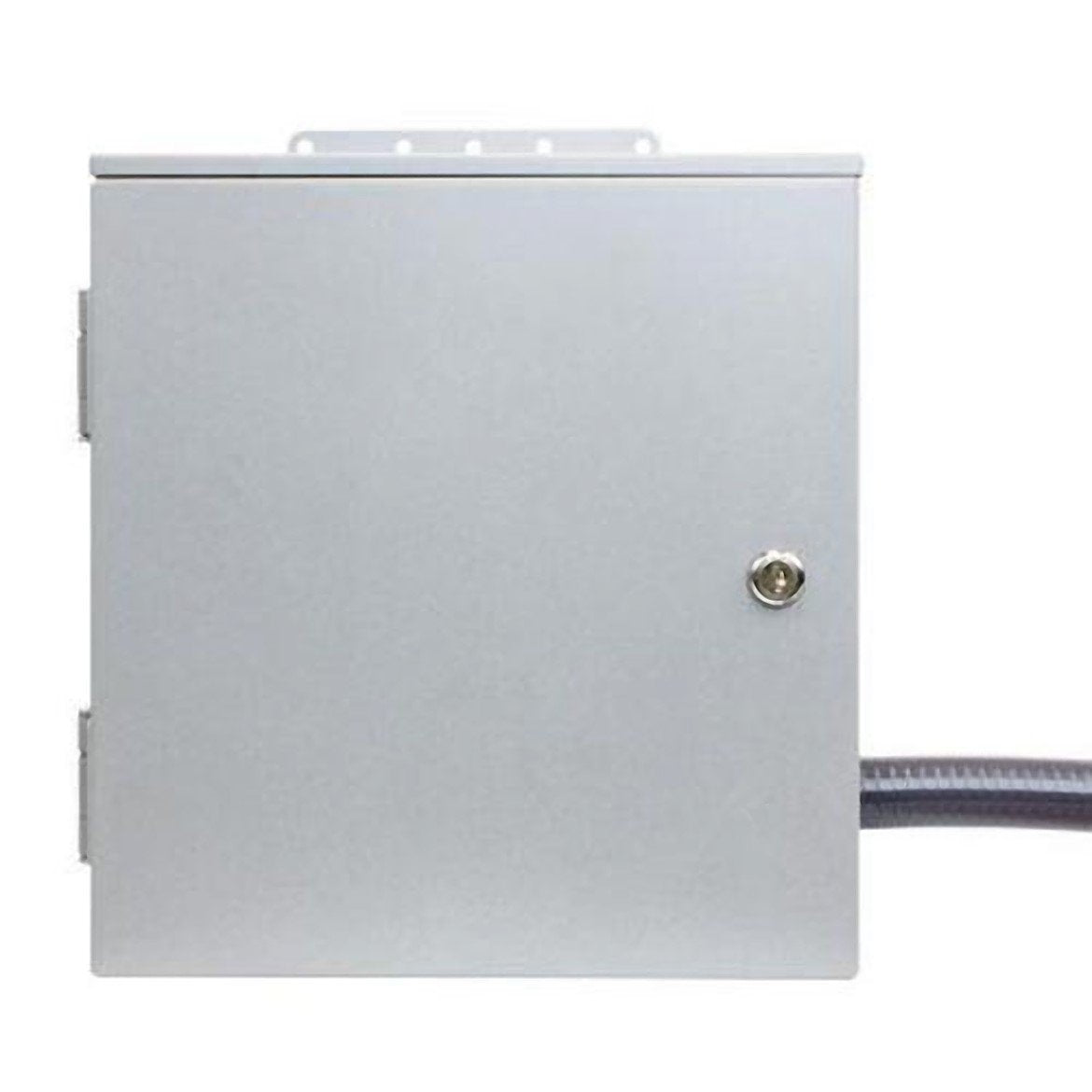

Reliance R310A 120/240-Volt 30-Amp 10-Circuit Pro/Tran Outdoor Transfer Switch

Features

• Pro/Tran 2 30A 10-Circuit 120/240V Outdoor Manual Transfer Switch
• The next generation of Loadside manual transfer switches
• Non-Defeatable (Break-Before-Make) Double-Throw Switch
• Eliminates dangerous backfeeds and electrical overloads
• 10 Total Circuits (1 Interchangable Style)
• (8) 15A 1-Pole, (1) 20A 2-Pole; Easily re-configured in the field

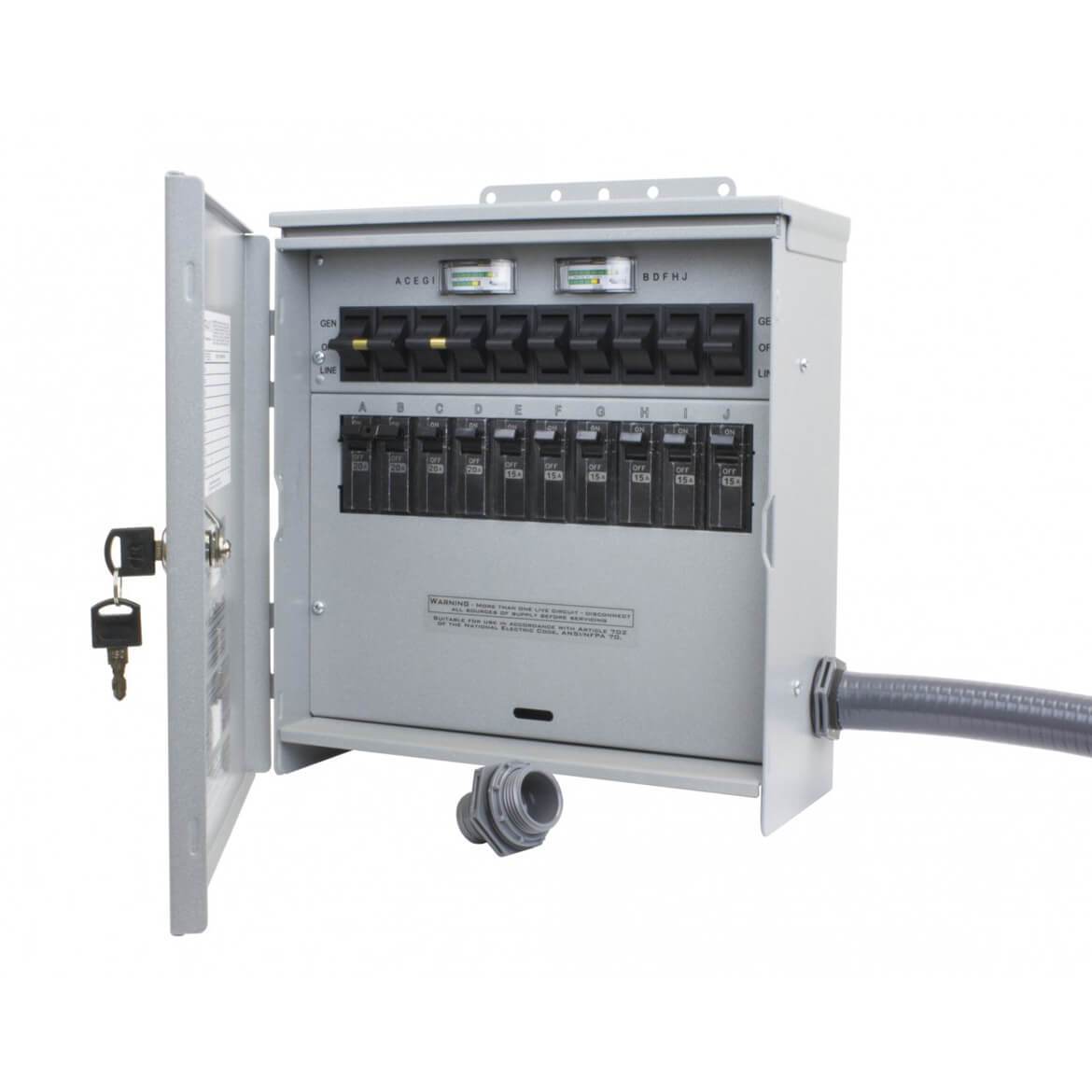

• Color-Coded Built-In Analog Wattmeters
• Helps you balance and manage generator load

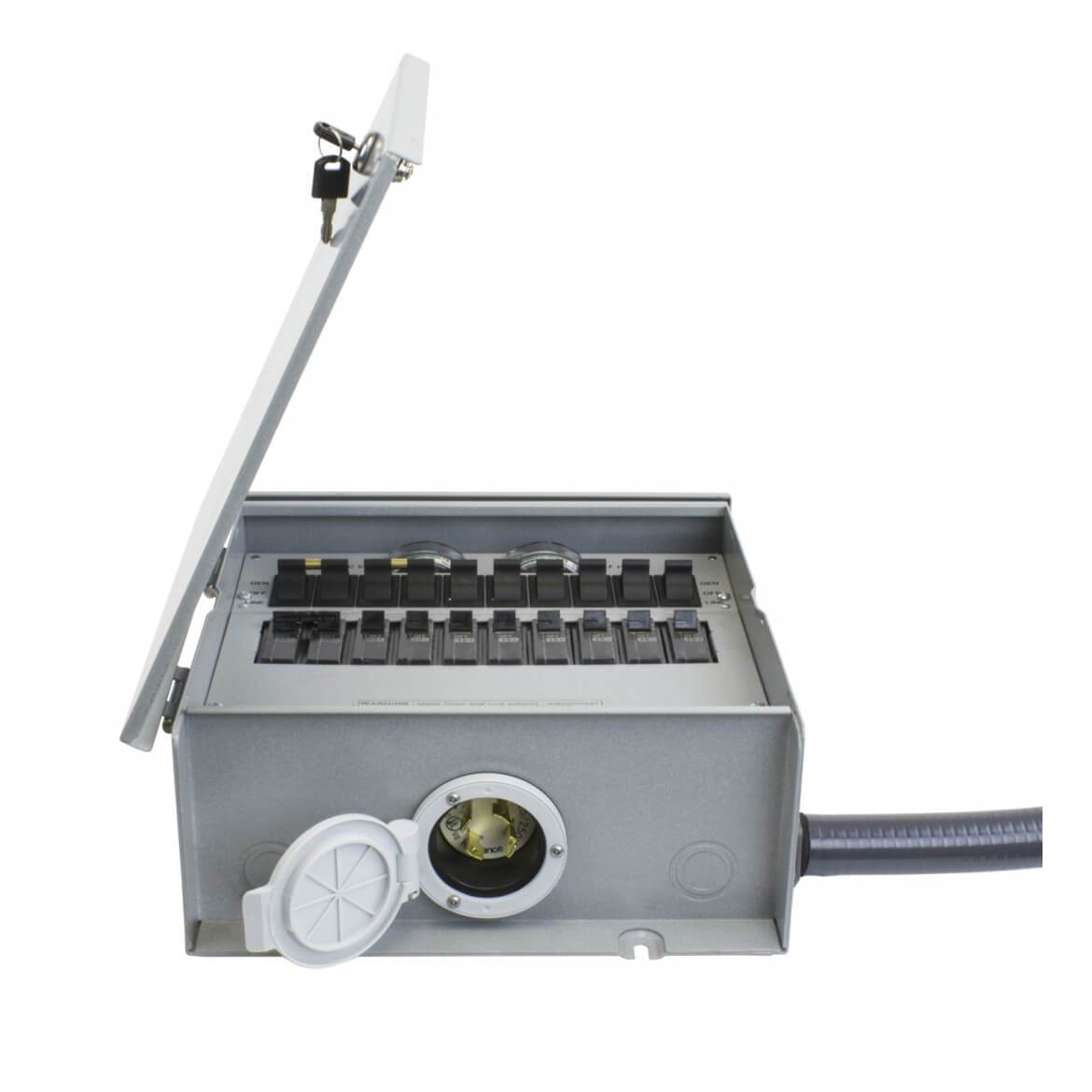

• Factory Installed 30-Amp (L14-30) Power Inlet w/ Flip-Lid
• Easily connect your generator cord on bottom of switch
• NEMA 3R Powder-Coated Steel Cabinet For Outdoor Installation
• Gasketed design, provides liquid tight protection in all seasons

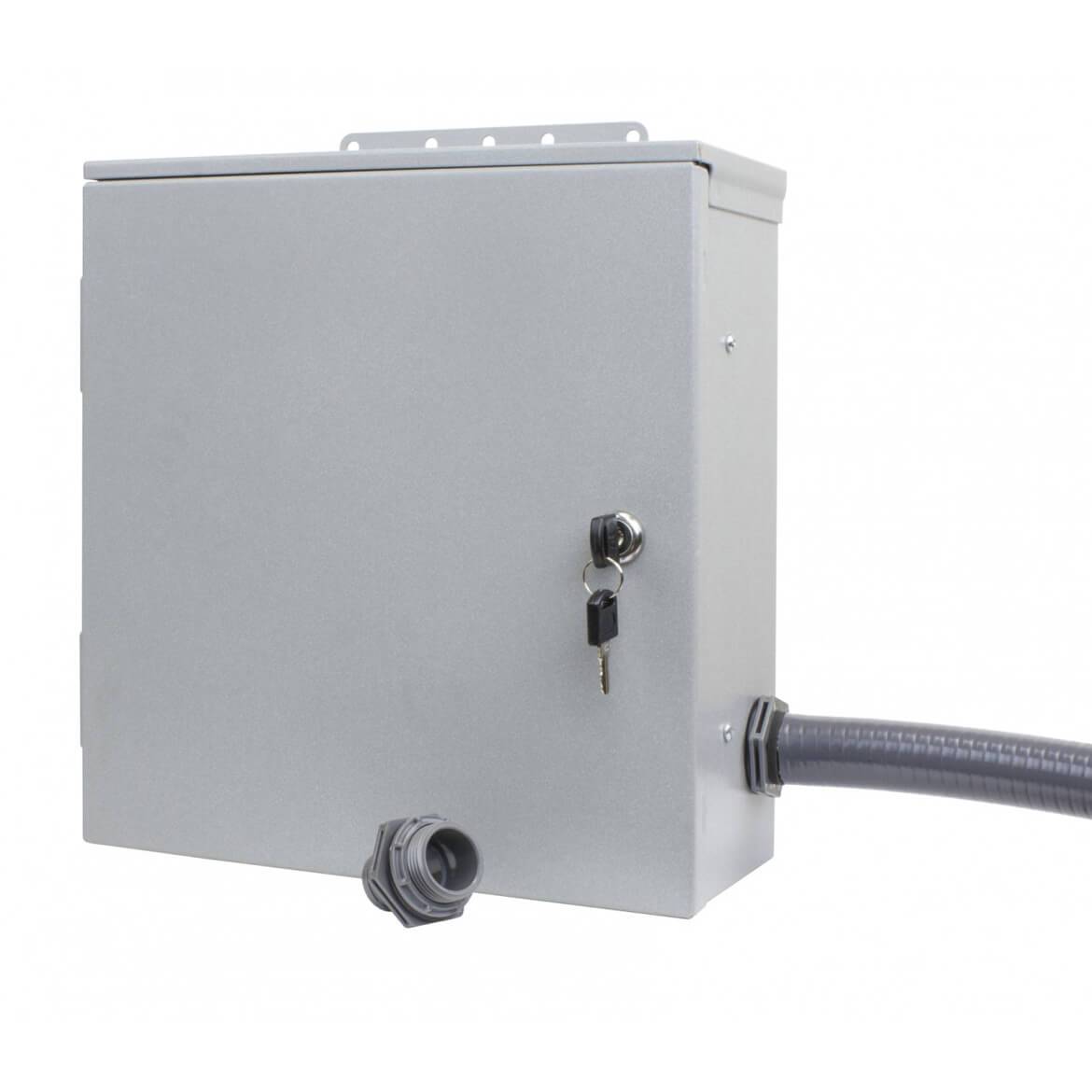

• Key lockable door prevents tampering and unauthorized use
• 16 Flexible, Non-Metalic Liquid-Tight Conduit (1) w/ Fittings
• (5) Combination 1/2 and 3/4 knockouts for easier installation
• Factory-marked, color-coded wires simplifies installation
• Certified for use by Underwriter Laboratories to UL Stanard 1008
• Meets all requirements of article 702 of the NEC ANSI/NFPA 70

What's in The Box

• 120/240-Volt 30-Amp 10-Circuit Outdoor Transfer Switch - R310A
• Owner's Manual

Warranty

• 5-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Model	R310A
Brand	Reliance
Voltage	120/240
Frequency	60 Hertz
Circuits	8 - 15A/120V 1 - 20A/240V
Max. Generator Running Watts	7,500
Phase	Single
Max. Single-Pole Circuits	10
Max. Double-Pole Circuits	5
Max. Combined Load at 125 Vac	60
Max. Combined Load at 250 Vac	30
Power Inlet	L14-30
Recommended Cord Size (Guage)	10
Conduit Size (in.0	1
Watt Meters	Yes
Weight (lbs.)	25
Cabinet Type	Outdoor
Dimensions (HxWxD) (in.)	13 x 12 x 5 (33.02 x 30.48 x 12.70 cm)
