Reliance R206A 120/240-Volt 20-Amp 6-Circuit Pro/Tran Outdoor Transfer Switch

Features

• Pro/Tran 2 20A 6-Circuit 120/240V Outdoor Manual Transfer Switch
• The next generation of Loadside manual transfer switches
• Non-Defeatable (Break-Before-Make) Double-Throw Switch
• Eliminates dangerous backfeeds and electrical overloads
• (4) 15A 1-Pole and (1) 20A 2-Pole; Easily re-configured in the field

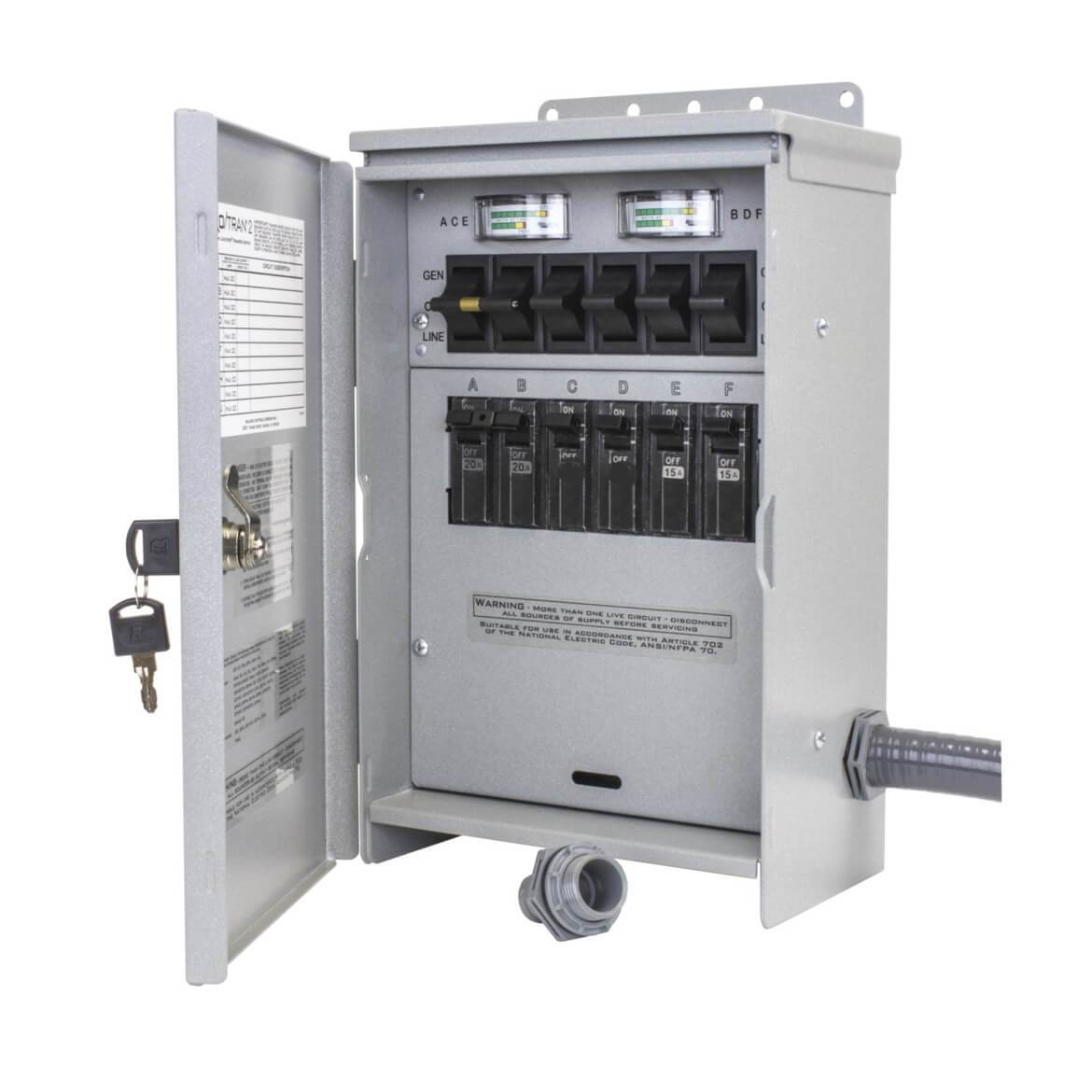

• NEW Color-Coded Built-In Wattage Meter
• Helps you balance and manage generator load

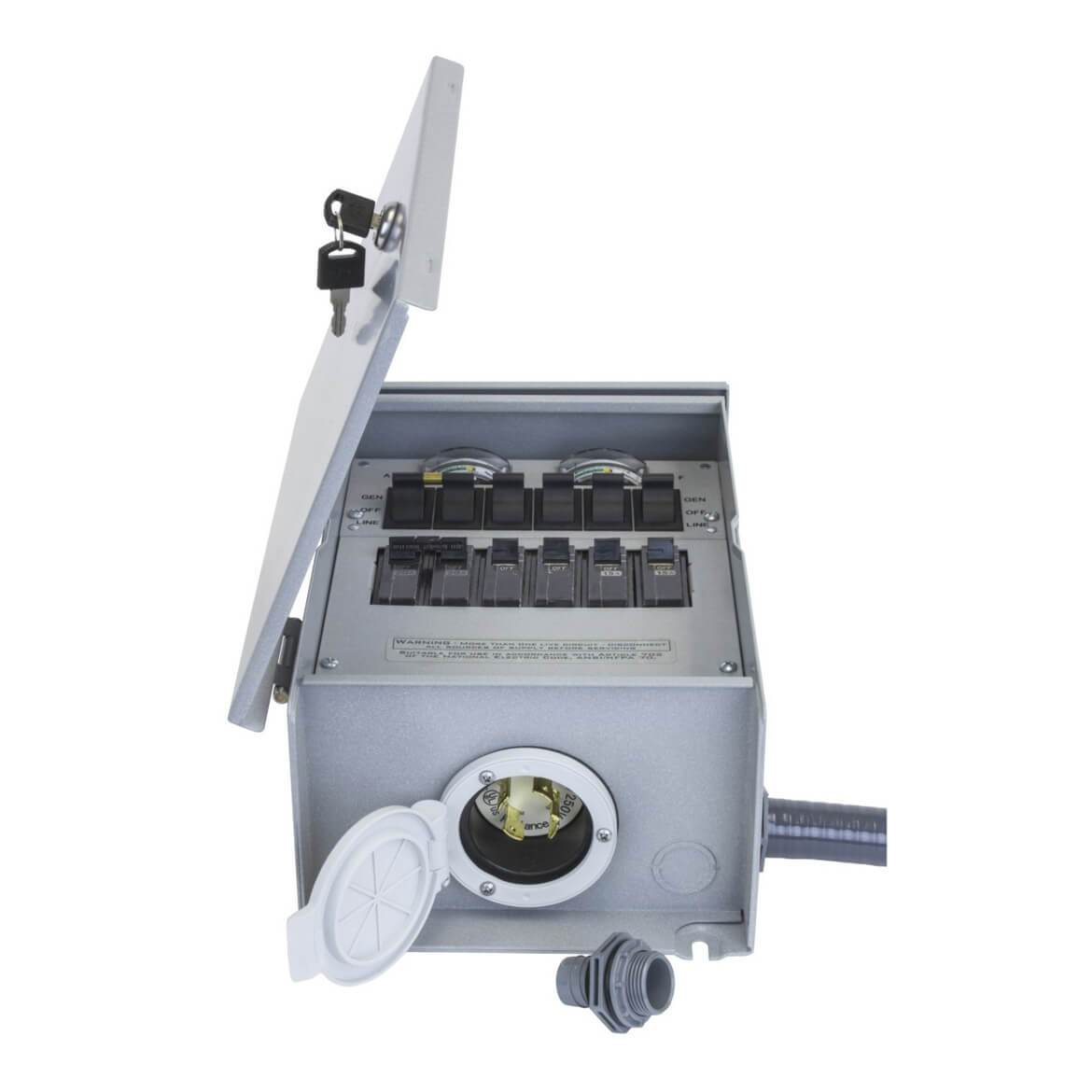

• Factory Installed (L14-20) Power Inlet w/ Flip-Lid
• Easily connect your generator cord on bottom of switch

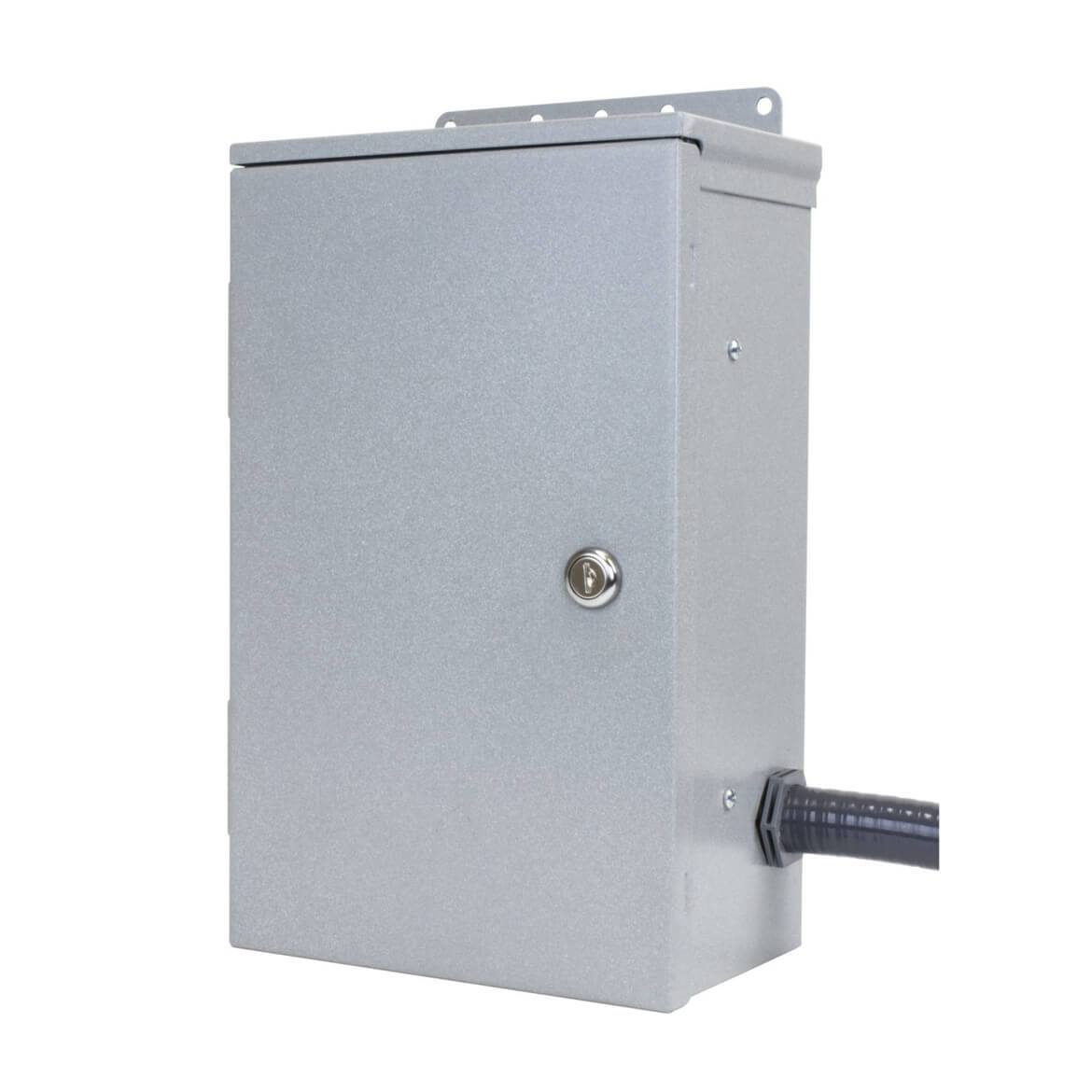

• NEMA 3R Powder-Coated Steel Cabinet For Outdoor Installation
• Gasketed design, provides liquid tight protection in all seasons
• Key lockable door prevents tampering and unauthorized use
• 16 Flexible, Non-Metalic Liquid-Tight Conduit (1) w/ Fittings
• (5) Combination 1/2 and 3/4 knockouts for easier installation
• Factory-marked, color-coded wires simplifies installation
• Certified for use by Underwriter Laboratories to UL Stanard 1008
• Meets all requirements of article 702 of the NEC ANSI/NFPA 70

What's in The Box

• 120/240-Volt 20-Amp 6-Circuit Outdoor Transfer Switch - R206A
• Owner's Manual

Warranty

• 5-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Model	R206A
Brand	Reliance
Voltage	120/240
Max. Wattage	5,000
Frequency	60 Hertz
Max. Generated Input (Amps)	20
Conduit Length (in.)	16
Circuits	4 - 15A/120V 1 - 20A/240V
Circuit Breakers	6
Weight (lbs.)	18
Dimensions (LxWxH) (in.)	13 x 8 x 5 (33.02 x 20.32 x 12.70 cm)
