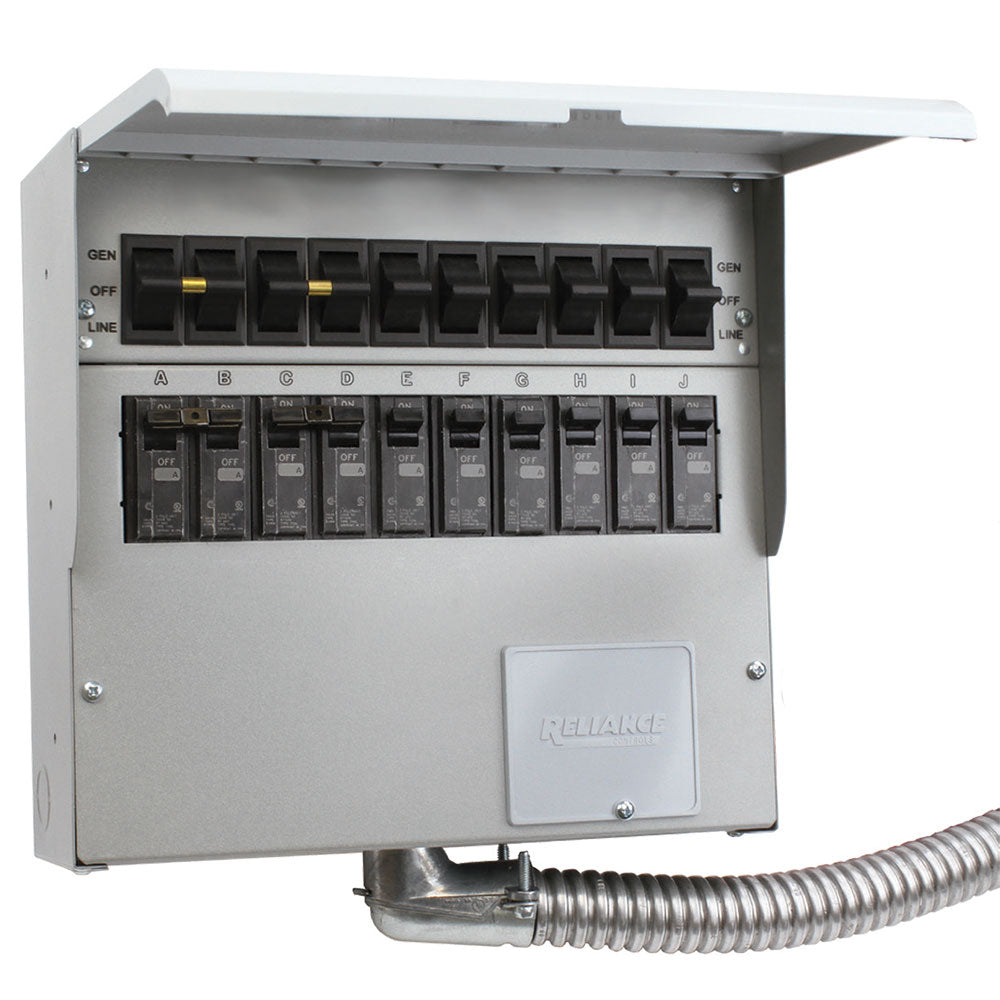

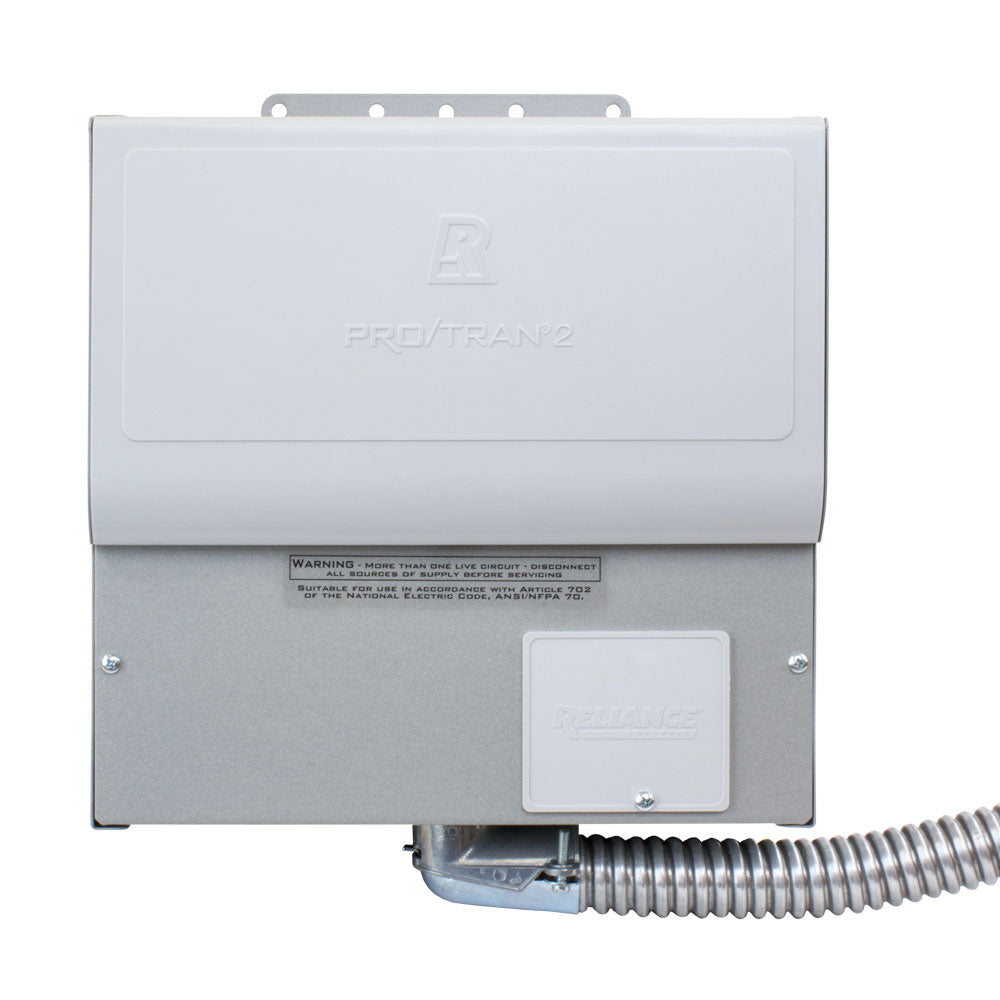

Reliance 310D 120/240-Volt 30-Amp 10-Circuit Pro/Tran Indoor Transfer Switch

Features

• Pro/Tran 2 30-Amp 10-Circuit 120/240V Manual Transfer Switch
• The next generation of Loadside manual transfer switches
• Safest Way to Distribute Power
• Eliminates dangerous backfeeds and electrical overloads
• NEW Color-Coded Built-In Wattage Meter
• Helps you balance and manager generator load
• 10 Single-Pole Circuits or 5 Double-Pole Circuits
• Versatile Connection
• Allows hardwiring OR plug-in connection via power inlet
• Hinged, Non-Metalic Cover
• Protects toggle swtiches/breakrs and povides a finished apperance
• Powder-Coated Steel Cabinet For Indoor Installation
• 18 Flexible conduit w/ all factory wires clearly marked/colored
• (6) Combination 1/2 and 3/4 knockouts for easier installation
• Easily re-configured in the field for multiple 2-pole circuits
• Safety and Certifications
• Certified for use by Underwriter Laboratories to UL Stanard 1008
• Meets all requirements of article 702 of the NEC ANSI/NFPA 70

What's in The Box

• 120/240-Volt 30-Amp 10-Circuit Indoor Transfer Switch - 310D
• Owner's Manual

Warranty

• 5-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Model	310D
Brand	Reliance
Maximum Wattage	7,500
Voltage	120/240
Phase	Single
Frequency	60 Hertz
Rated Amps	60/30
Max Generator Input	30 Amps
Conduit Length (in.)	18
Enclosure	NEMA 1R
Circuits	6 - 15A/120V 2 - 20A/240V
Circuit Breaker Protection	Each Circuit
Circuits Breakers	10
Weight (lbs.)	13 (5.90 kilograms)
Dimensions (LxWxH) (in.)	11 x 11.75 x 4.5 (27.94 x 29.85 x 11.43 cm)
