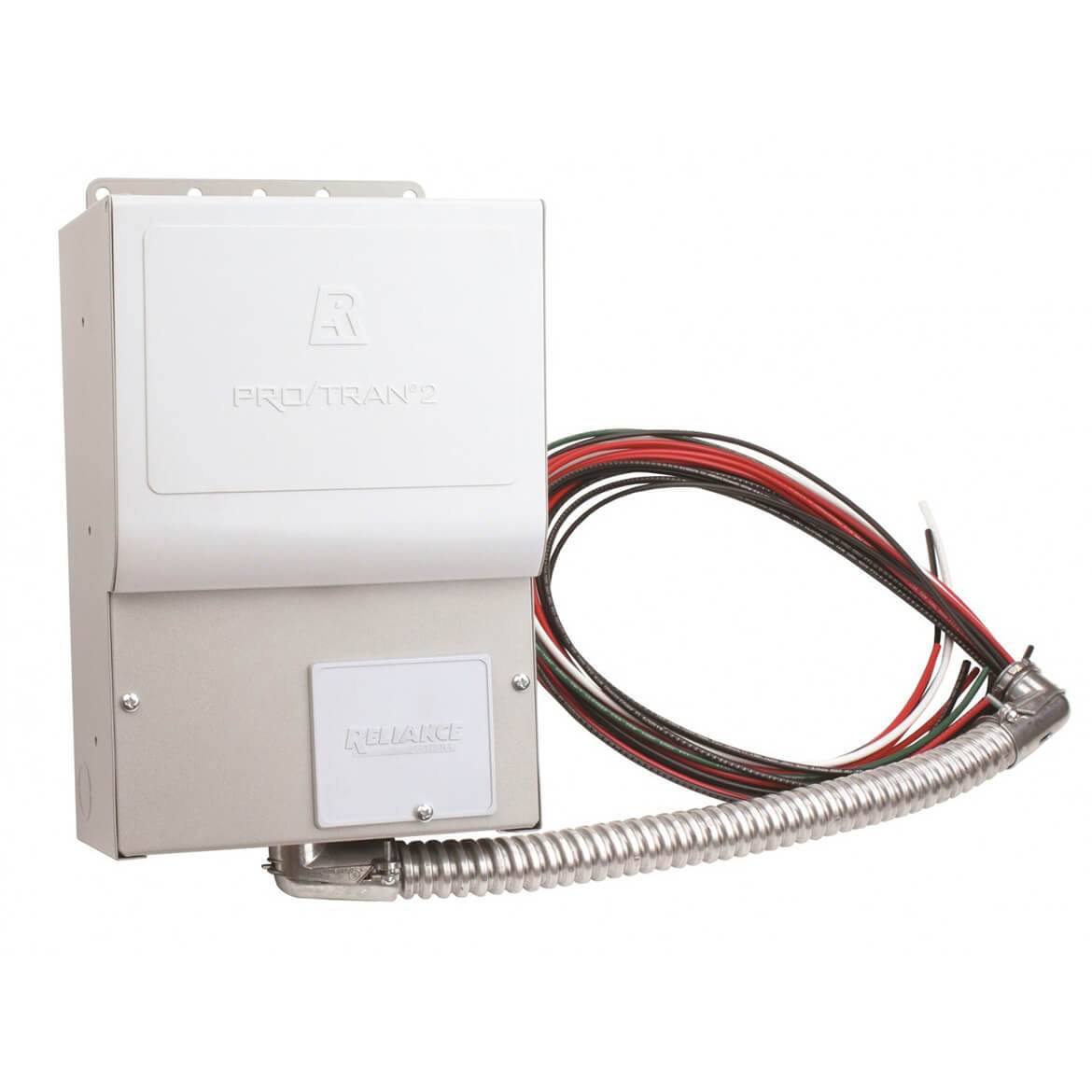

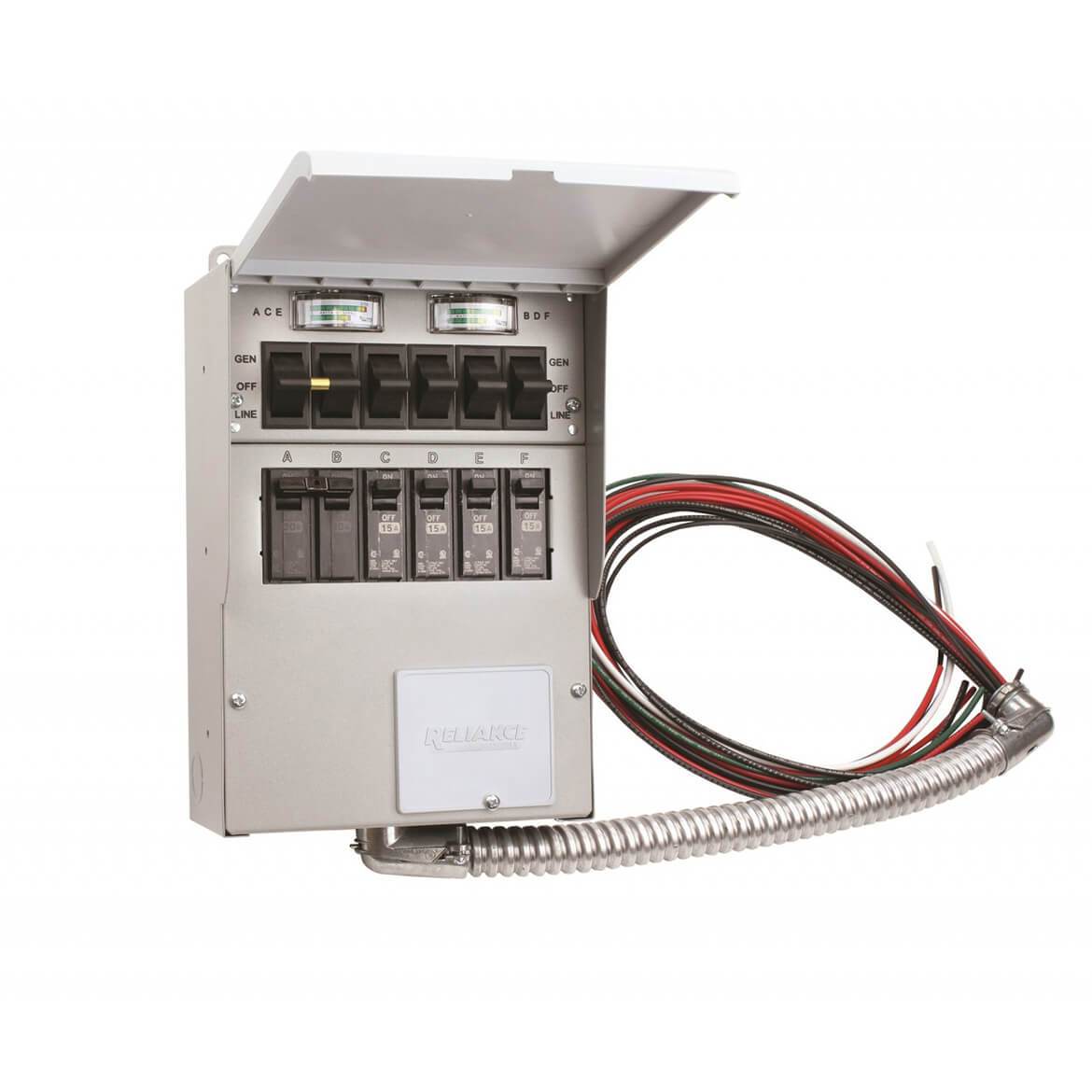

Reliance 306C 120/240-Volt 30-Amp 6-Circuit Pro/Tran Indoor Transfer Switch

Features

• Pro/Tran 2 transfer switches feature a rugged powder-coated steel cabinet with six combination 1/2-inch and 3/4-inch knockouts, and 1-inch interchangeable circuit breakers.
• The 1-inch breakers allow a larger circuit size (max of 1 x 30A double-pole), and installation of AFCI and GFCI breakers.
• All models include a hinged detachable cover to help protect and finish off the overall look of the product.
• These indoor surface mount transfer switches are designed for fast installation in residential and commercial applications.
• The 16-inch flexible conduit whip attaches easily to a knockout on the load center and all factory wires are clearly marked and colored for identification.

What's in The Box

• 120/240-Volt 30-Amp 6-Circuit Pro/Tran Indoor Transfer Switch - 306C
• Owner's Manual

Warranty

• 5-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Model	306C
Brand	Reliance
Voltage	120/240
Max. Generator Running Watts	7,500
Phase	Single
Max. Single-Pole Circuits	6
Max. Double-Pole Circuits	3
Max. Rating Per Circuit	2/30A,4/20A
Max. Combined Load at 125 Vac	60
Max. Combined Load at 250 Vac	30
Power Inlet	None
Recommended Cord Size (Guage)	10
Conduit Size (in.)	3/4
Conduit Length (in.)	16
Watt Meters	Yes
Dimensions (HxWxD) (in.)	11.25 x 7.75 x 4.5
Cabinet Type	Indoor
