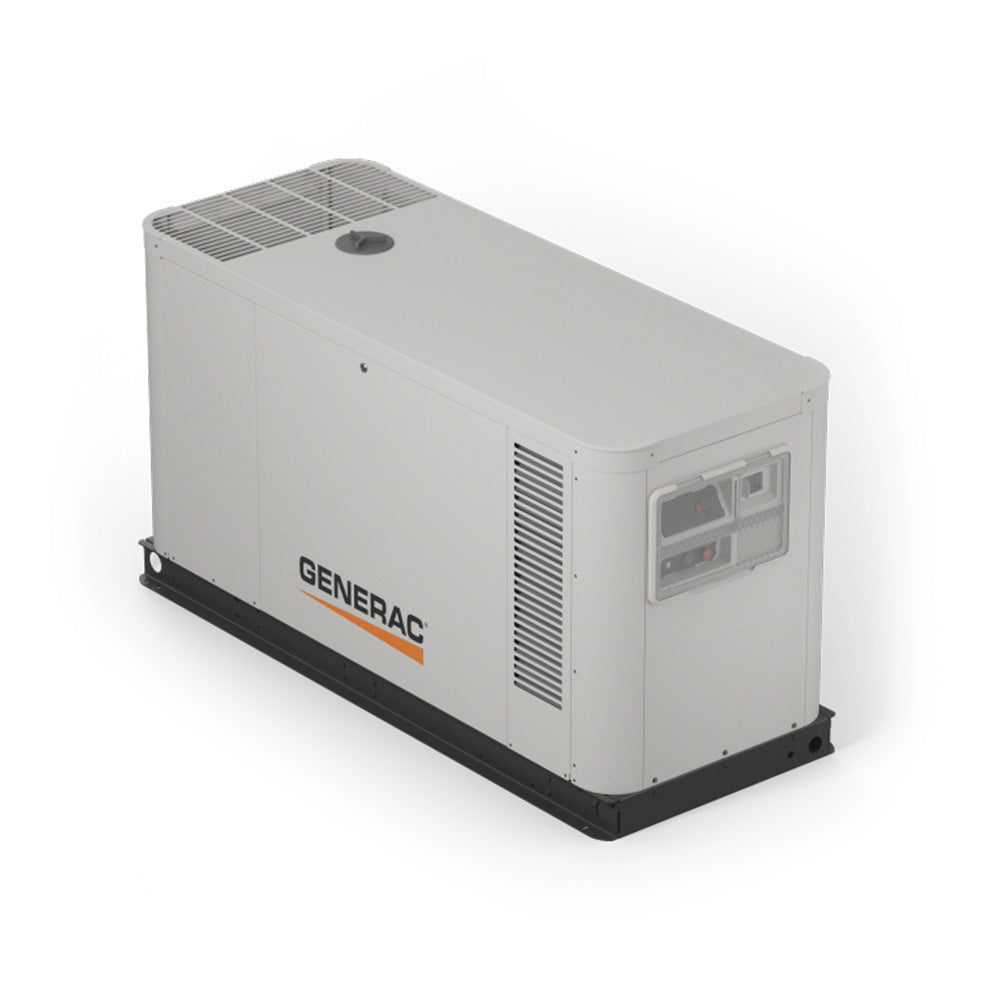

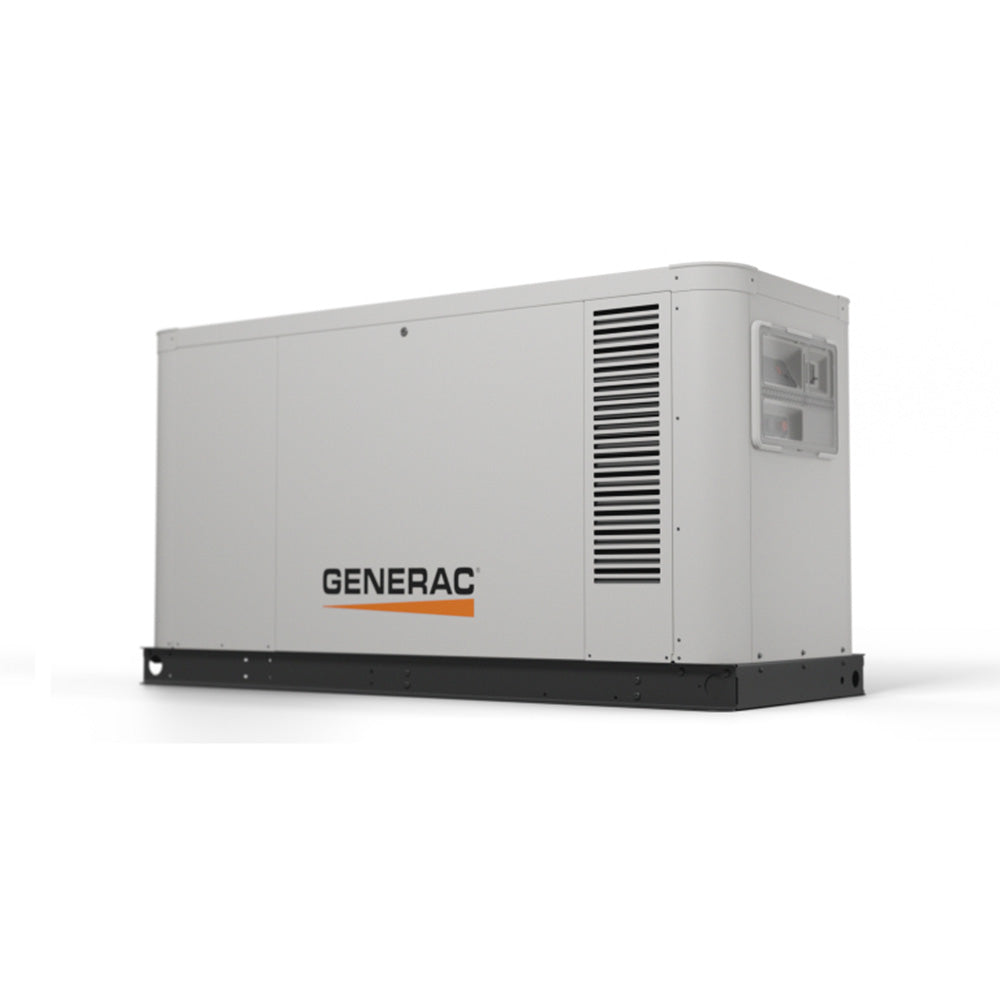

Generac XG04045CNAC 45kW LC 3 Phase Automatic Standby CARB Generator

Generac XG04045CNAC 45kW LC 3 Phase Automatic Standby CARB Generator

$18,816.85
$18,816.85 $18,816.85
SAVE 0% Sold out

🔥 Almost sold out – Once they’re gone, they’re gone!

🚚 Free shipping on all orders

💯 [30]-day satisfaction guarantee

Don’t miss out—click below to secure yours!

Generac XG04045CNAC 45kW LC 3 Phase Automatic Standby CARB Generator

$18,816.85
$18,816.85 $18,816.85
SAVE 0% Sold out

    Get it between - and -.

    guardian-home-backup
    Product Downloads
    brochure-download

    Brochure

    specifications-download

    Specifications

    manual-download

    Owner's Manual

    manual-download

    Wi-Fi Manual

    warranty-download

    Warranty

    Features
    • Power Zone 410 Controller, NFPA 110 Capable
    • Cellular Connectivity for Mobile Link and Fleet
    • Quiet Operation
    • Corrosion Resistant Enclosure & Frame
    • 5 Year/2,000 Hour Limited Warranty
    • Hi Motor Starting, Surge Capacity
    • Fuel Efficiency
    • Controller-Selectable Fuel Type - Natural Gas or Propane Vapor
    • 1-Phase or Configurable 3-Phase Voltage Output
    • Single-Side Regular Maintenance Access
    • EPA & SCAQMD Exhaust Emissions Certified
    • As close as 18 in (457 mm) offset distance from structure
    What's in The Box
    • 45kW LC Automatic Standby Generator 3-Phase CARB - XG04045CNAC
    • Owners Manual
    Warranty
    • 5-Year Limited Factory Warranty
    • 30 Day Satisfaction Guaranteed
    true-power-technology
    Specifications
    SKU XG04045CNAC
    Brand Generac
    Generator Output
    Voltage XG03245 XG04045
    Natural Gas Liquid Propane
    Power (kW) Current (A) Power (kW) Current (A)
    120/240 1–Phase 32 133 32 133 40 40 139
    208/120 3–Phase 32 111 32 111 40 40 120
    240/120 3–Phase 32 32 40 40
    480/277 3–Phase 32 32 40 40
    Voltage Regulation
    Type Electronic
    Sensing All Phases
    Regulation +- 1 percent
    Governor Specifications
    Type Electronic
    Frequency Regulation Isochronous
    Steady State Regulation +- 25 percent
    Alternator System Specifications
    XG03245 XG04045
    1-Phase 3-Phase 1-Phase 3-Phase
    Voltage Output 120/240 V Only 208/120 V; Configurable for 480/277 or 240/120 V with Optional Field-Installable VCC 120/240 V Only 208/120 V; Configurable for 480/277 or 240/120 V with Optional Field-Installable VCC
    Circuit Breaker (CB) Size 150 A Not Included; Optional Field-Installable Kit 200 A Not Included; Optional Field-Installable Kit
    Type Synchronous Synchronous
    Rotor Insulation Class F F
    Stator Insulation Class H H
    Telephone Interference Factor (TIF) < 50 < 50
    Bearings Sealed Ball Sealed Ball
    Coupling Flexible Disc Flexible Disc
    Excitation System Direct Direct
    Engine Specifications
    XG03245 XG04045
    Make Generac
    Model Inline 4 Cylinder
    Cylinders 4
    Displacement (L) 4.5
    Bore 4.5 in
    Stroke 4.25 in
    Compression Ratio 9.9:1
    Lifter Type Hydraulic
    Intake Air System Naturally Aspirated
    Temperature Derate 1.5% per every 5°C above 25°C (1.65% per every 10°F above 77°F)
    Altitude Derate 1% per every 100 m above 183 m (3% per every 1000 ft above 600 ft)
    Exercise Speed (RPM) 1,200
    Operating Speed (RPM) 1,800
    Cooling System
    XG03245 XG04045
    Coolant 50/50 (50% Ethylene Glycol)
    Coolant System Capacity (L (US gal)) 11 (2.9)
    Water Pump Belt–Driven
    Fan Type Mechanical
    Fan Quantity 1
    Maximum Ambient Air Temperature (C (F)) 50 (122)
    Fuel Types
    XG03245 XG04045
    Natural Gas Yes
    NG Pressure (kPa (in. WC)) 0.87 – 3.48 (3.5 – 14)
    Liquid Propane Yes
    LP Vapor Pressue (kPa (in. WC)) 1.74 – 3.48 (7–14)
    Fuel Type Configuration Controller-Selected
    Fuel Shutoff Solenoid Standard, Dual
    Fuel Consumption
    Rated Load XG03245 XG04045
    Natural Gas Liquid Propane Natural Gas Liquid Propane
    (m3/h) (CFH) (m3/h) (CFH) (m3/h) (CFH) (m3/h) (CFH)
    25% 4.8 169 8.3 2.2 5.2 184 10 2.6
    50% 6.8 240 12.9 3.4 8.2 289 14.5 3.8
    75% 9.5 335 15.8 4.2 11.1 392 17.7 4.7
    100% 11.5 406 18.5 4.9 14 494 21.7 5.7
    Electrical System
    System Voltage 12
    Battery Charge Alternator (A) 37
    Battery Charger (A) 5
    Recommended Battery (not included) Group 27R, 725 CCA Minimum
    Maximum Allowable Battery Group 31R
    GENERAC GUARDIAN SERIES 20KW GENERATOR FEATURES AND BENEFITS
    This generator provides essential circuit power protection for your home during a power outage, ensuring that essential appliances maintain power. This standby generator is automatic and offers protection year-round, for less than the cost of central air conditioning.
    Every Guardian Series home standby generator comes with Mobile Link™ Remote Monitoring. Remote Monitoring is FREE, and allows you to monitor the status of your generator from anywhere in the world. Use a smartphone, PC, or tablet to access generator information, such as the current operating status and maintenance alerts. By connecting your account you have access to authorized service dealers for fast, friendly, and proactive service.
    Generac generators are ideal for weathering storms and power outages. Their automatic backup power gives you piece of mind that your home and appliances are protected.
    Generac generators and engines are designed, engineered and assembled in the USA using domestic and foreign parts.
    The Generac G-Force Engine is built to handle the stressors of generator use. This results in power that’s more reliable and requires less routine maintenance than competitor engines. Generac’s new G-Force engine is purpose built and pressure-lubricated. It features hydraulic lifters, which improve engine performance and extending the life of the product. (Hydraulic lifters only available on the 13 & 16 kW.)
